Acquista Analog Meter Shunt 100a/50mv Gold / Black One Size unisex

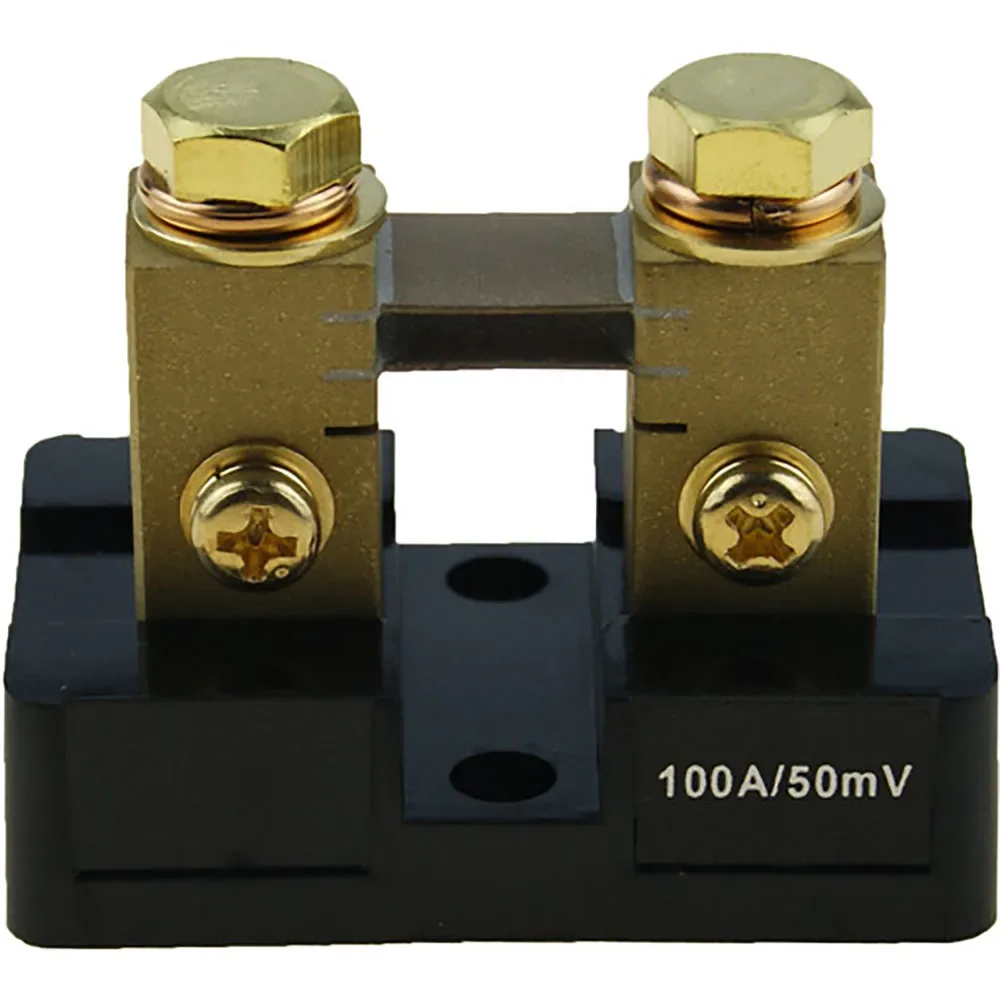

Electronics - Accessories.BLUE SEA SYSTEMS Analog Meter Shunt 100A/50mV.Analog meter shunt 100a/50mv.Achieve precise and reliable DC current measurement in your high-amperage electrical systems with the BLUE SEA SYSTEMS Analog Meter Shunt. This essential component is expertly engineered to enable the accurate monitoring of large currents, such as those from alternators, battery banks, or solar arrays, using a standard, sensitive analog meter. By converting a high 100A current into a small, manageable 50mV signal, this shunt protects your delicate metering equipment while providing you with the critical data needed for effective power management, system diagnostics, and enhanced safety. Ideal for demanding marine, automotive, RV, and off-grid solar applications, this shunt is the cornerstone of any robust electrical monitoring setup.Key Benefits:* Precision Current Monitoring: Enables highly accurate measurement of DC current up to 100A, giving you a clear view of your power consumption and generation.* Protects Sensitive Instruments: Safely steps down high current to a low millivolt signal, allowing sensitive and affordable 50mV analog meters to be used without risk of damage.* Enhanced System Management: By tracking current flow, you can effectively manage battery state of charge, verify alternator and charger performance, and identify potential electrical issues before they become critical.* Robust and Reliable: Built to the exacting standards of Blue Sea Systems, this shunt is designed for long-term reliability and performance in harsh marine and vehicular environments.* Simple Integration: Designed for straightforward installation into your main DC positive or negative line, providing a seamless link between your high-power circuit and your monitoring gauge.Main Features:* Rated for a continuous current load of 100 Amperes.* Produces a precise 50 millivolt output signal at the full 100A rating.* Individually calibrated to ensure measurement accuracy.* Features a robust, insulated mounting base that prevents accidental shorts and ensures secure installation on any surface.* Engineered for minimal resistance to reduce heat generation and power loss within the circuit.Connectors:* High-Current Terminals: Two large terminal studs designed for secure connection of high-amperage battery cables. These ensure a low-resistance path for the main circuit current.* Meter Sense Terminals: Two smaller machine screws provide a dedicated, secure connection point for the small-gauge sense wires leading to your 50mV analog meter.Technical Specifications:* Model: 8255* Maximum Current (Continuous): 100A DC* Output Voltage: 50mV 100A* Shunt Material: Solid Brass* Base Material: Glass-Filled Nylon* Main Terminal Stud Size: 5/16-18* Meter Sense Screw Size: 8-32* Dimensions (L x W x H): 82.55mm x 44.45mm x 19.05mm (3.25 x 1.75 x 0.75)
